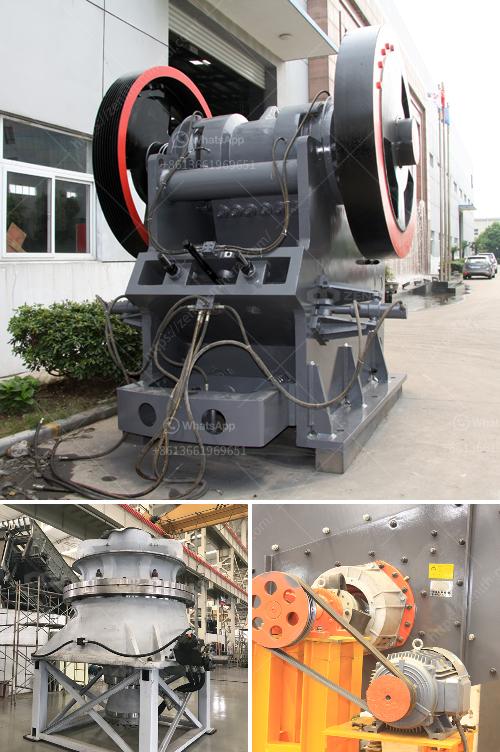

PE 750*1060 Jaw Crusher Product Catalogue
Product Overview
The PE 750*1060 jaw crusher is a robust and efficient model designed for primary crushing of medium-hard to very hard materials. It is widely used in various industries, including mining, construction, cement, and metallurgy.
Specifications
- Model: PE 750*1060
- Feed Opening Size: 750 mm x 1060 mm
- Max Feeding Size: 630 mm
- Adjustable Range of Discharge Opening: 80-140 mm
- Capacity: 110-320 TPH (tons per hour)
- Motor Power: 110 kW
- Weight: 29,000 kg
Features
- High Crushing Ratio: The crusher offers a high reduction ratio, making it suitable for large input materials.
- Durable Components: The use of high-quality materials ensures long life and reliable operation.
- Easy Maintenance: Simple structure makes it easy to maintain and reduces downtime.
- Stable Performance: Advanced technology ensures stable performance, high efficiency, and reduced vibration.
Frame Structure
Main Components
- Main Frame: Fabricated from heavy-duty steel for enhanced durability.
- Fixed Jaw Plate: High-manganese steel, which offers excellent wear resistance and strength.
- Movable Jaw Plate: Crafted from high-manganese steel, ensuring long service life and effective performance.
- Eccentric Shaft: Precisely machined from forged steel, offering excellent strength and stability.
- Jaw Stock: Heavy-duty casting, for high reliability and robustness.
- Toggle Plate: Designed to protect the crusher's key components by breaking if the jaw crusher encounters uncrushable material.
- Adjusting Mechanism: Hydraulic or mechanical, allowing for easy adjustments to the discharge opening.
- Flywheel: Made from high-quality casting iron or steel, it stores energy to ensure continuous operation even under peak loads.
Working Principle
The PE 750*1060 jaw crusher operates based on the principle of squeeze and release. Material is fed into the crushing chamber and pushed between the two jaw plates—one fixed and one movable. The movable jaw compresses material against the fixed jaw, crushing it to the desired size before discharge through the bottom opening.
Maintenance Tips
- Regularly Check Wear Parts: Monitor jaw plates, toggle plates, and other components for wear and tear.
- Lubrication: Ensure regular lubrication of all moving parts.
- Tightening Bolts: Periodically check and tighten all bolts and connections.
- Replace Damaged Parts: Promptly replace any worn or damaged parts to maintain optimal performance and safety.
By following the above guidelines and maintaining the crusher regularly, you can ensure long-term efficiency and reliability of the PE 750*1060 jaw crusher in industrial applications.
