How to build a manganese ore concentrator? What crushing machinery do you need?

Building a manganese ore concentrator involves several steps and requires various pieces of equipment to efficiently process the ore. Here's an overview of the process and the necessary machinery:

Steps to Build a Manganese Ore Concentrator:

1. Ore Extraction:

   • Obtain manganese ore from mining operations.

2. Crushing and Grinding:

   • Crush the ore to reduce it to a manageable size for further processing.

3. Screening and Classification:

   • Separate the crushed ore into different size fractions.

4. Concentration:

   • Use gravity separation, magnetic separation, or flotation to concentrate the manganese content.

5. Dewatering:

   • Remove excess water from the concentrated ore.

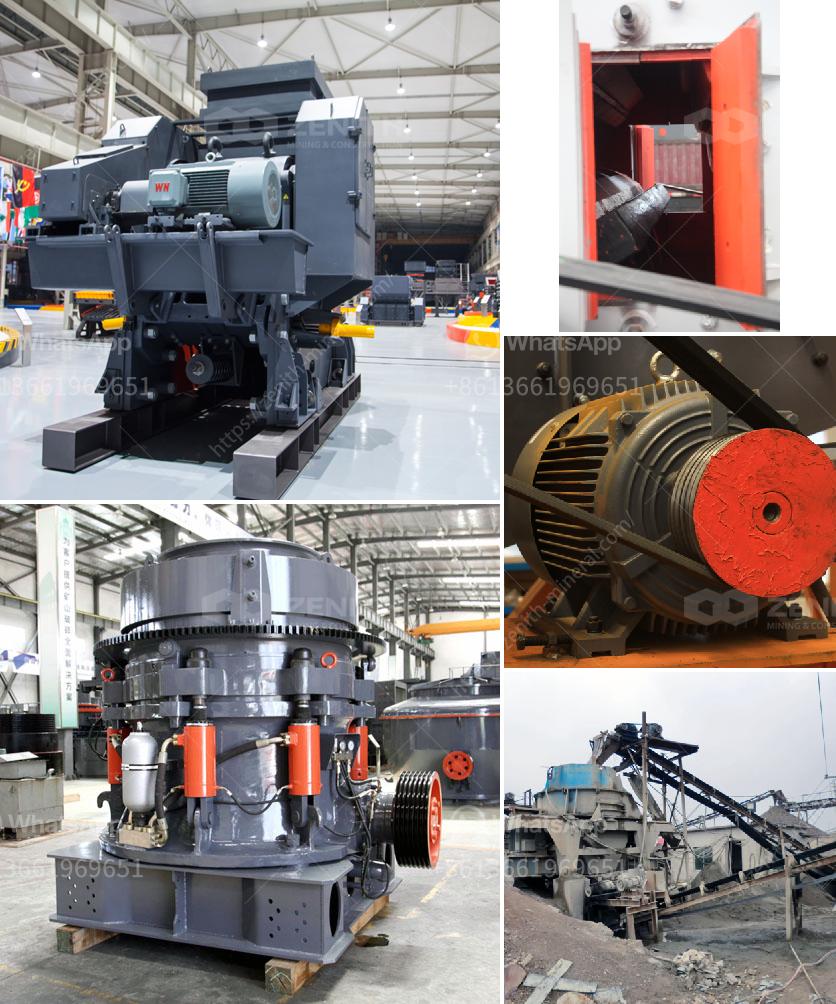

Required Crushing Machinery:

1. Jaw Crusher:

   • Primary crushing: Reduces large lumps of ore to a manageable size.

2. Cone Crusher or Impact Crusher:

   • Secondary crushing: Further reduces the size of the ore to prepare it for fine grinding.

3. Ball Mill or SAG Mill:

   • Grinding: Reduces the crushed ore to a fine powder, allowing for further processing.

4. Vibrating Screen:

   • Screening: Separates the crushed ore into different size fractions for further processing or direct use.

5. Spiral Classifier or Hydrocyclone:

   • Classification: Separates fine particles based on their size and density.

Concentration Equipment:

1. Gravity Separation Equipment:

   • Jigs, shaking tables.
   • Used if manganese ore has significant differences in density compared to the gangue.

2. Magnetic Separator:

   • Used if the ore is strongly magnetic.

3. Flotation Cell:

   • Used if the manganese ore can be separated by flotation.

Ancillary Equipment:

1. Pumps and Pipes:

   • Used for transferring slurry between different stages of the concentrator.

2. Thickener:

   • Used to concentrate slurry and reduce water content before further processing.

3. Dewatering Screens and Filter Press:

   • Used to remove water from the final concentrate.

Building a manganese ore concentrator requires not only the right machinery but also careful planning, expertise in mineral processing, and considerations for operational efficiency, environmental impact, and safety. Ensure compliance with local regulations and industry best practices.
